CANON EOS 1000D Focusing Screen Installation Instruction

~~Please prepare~~

1.Please prepare we send to your focusing screen and the accessories

2.Sweeps tool

~~Install procedure ~~

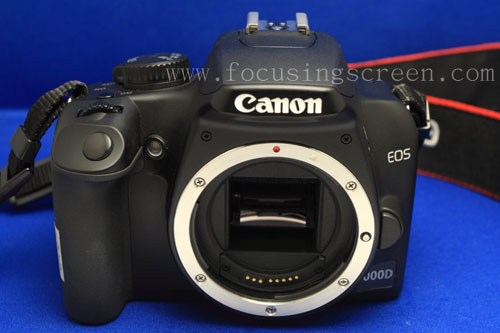

<P1>This is the Canon EOS 1000D camera.

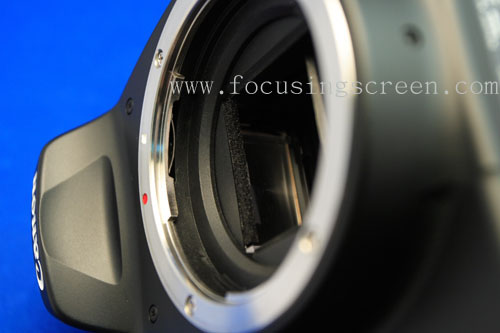

<P2> Please watch for position of seeing the foam.

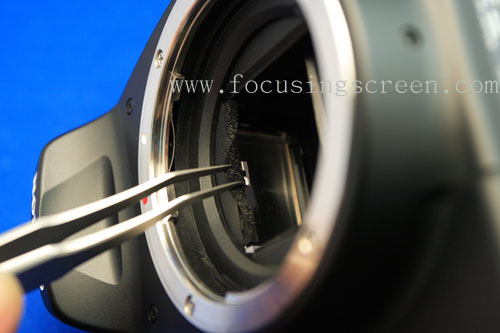

<P3> Angled the foam with the Tweezers can see an eyelet.



<P4>Please take out Tweezers in the packing.

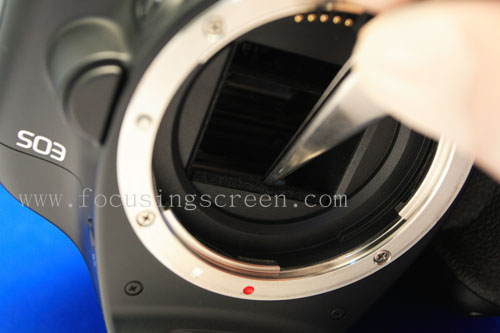

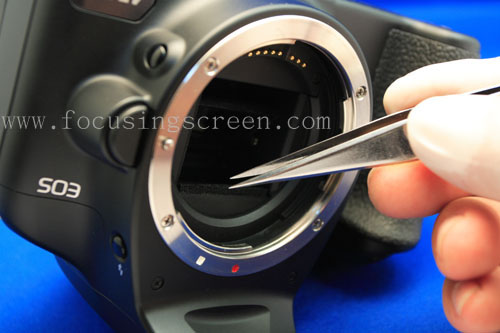

<P5>Make use of Tweezers point into the eyelet of switch and "press downward first " "push inside after" can open the spring lock .



<P6>Take out the spring lock be careful, don't harm mirror

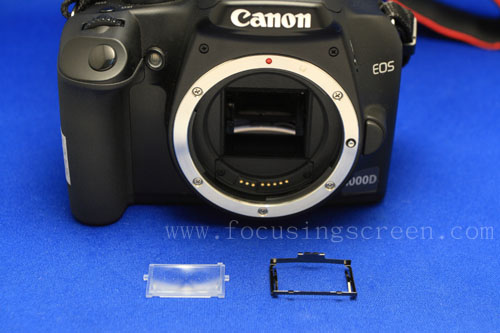

<P7>This is the spare parts(1.Spring lock 2.focusing screen) for taking out.



<P8>This is Canon eos 1000d k3 focusing screen

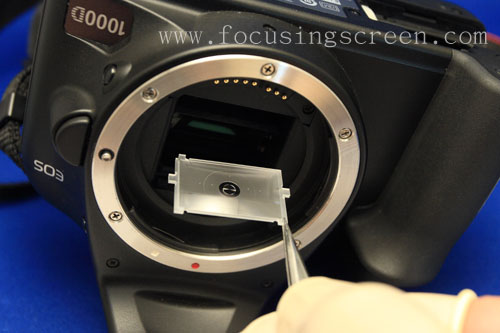

<P9> Please clip the focusing screen edge and put the inside of the camera.



<P10>After putting the spring slice returns.



<P11>Before fixing please check whether screen surface have dust or not.

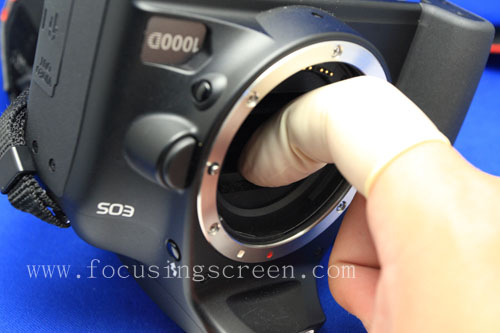

<P12>You can use Tweezers or use thumb to lock spring slice.

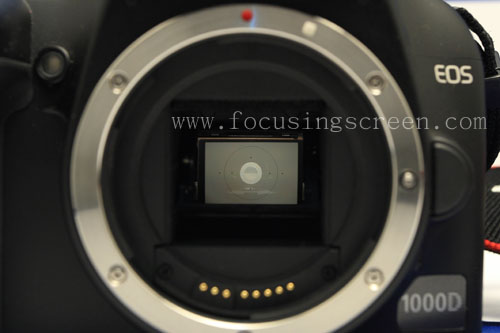

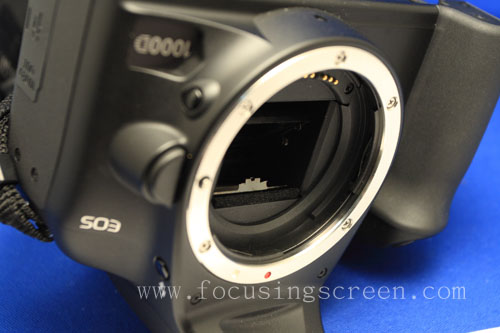

<P13>The focusing screen already install completion.



<P14>This is the appearance which didn't focus.



<P15>This is the focus appearance.





Canon EOS 1000D camera change focusingscreen will not influence Auto Focus.Focusing point red light will not be bright,Please make reference to ---> more focus point explain
