NIKON D5000 / D3000 Focusing Screen Installation Instruction

~~Please prepare~~

1.Please prepare we send to your focusing screen and the accessories

2.The sweeps tool



~~Install procedure ~~

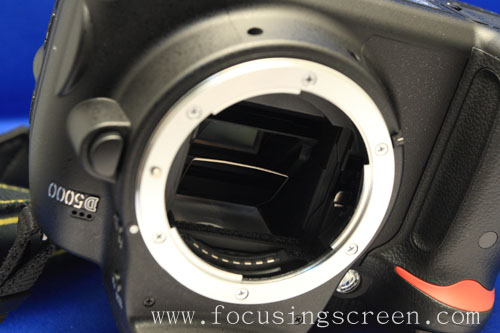

<P.1>This is the NIKON D5000 camera.

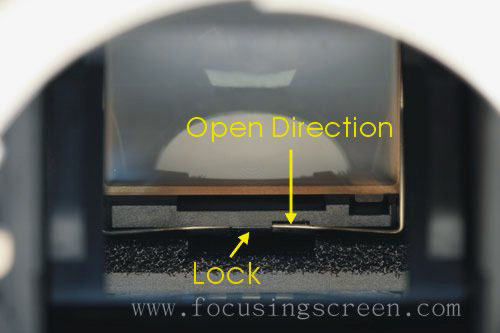

<P.2>You can see the structure of inside .yellow arrowhead is open direction and lock.

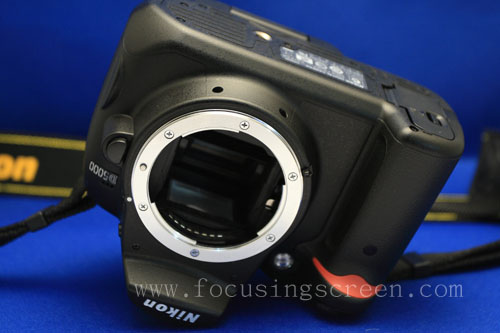

<P.3>Please reverse and standing this camera.

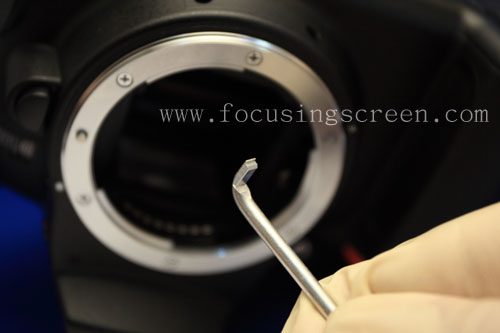

<P.4>This tool is a focusing screen accessories in the packing box,Please take out.



<P.5>Insert into the entrance of yellow arrowhead.

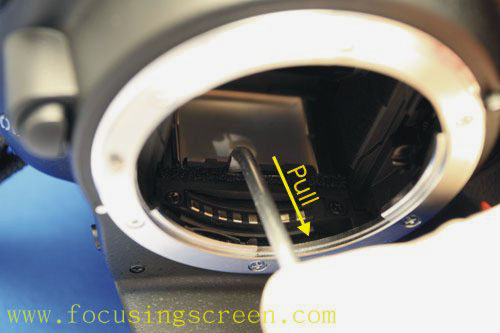

<P.6>After going in ,the edge of tool will hang wire,outwardly pull can open it.



<P.7>The lock has already opened.

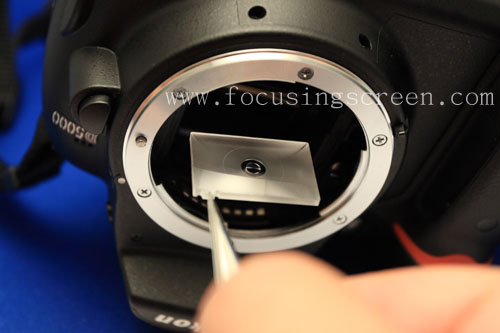

<P.8> Please clip the original focusing screen edge and take out of the camera.

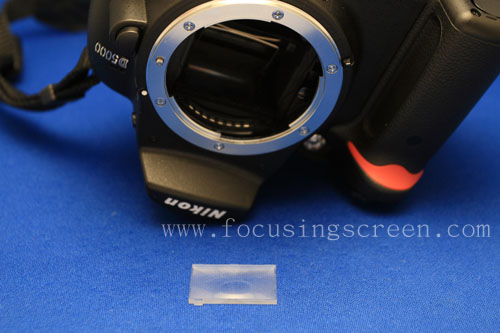

<P.9>Taking out the original screen.(The slice doesn't need to take out )

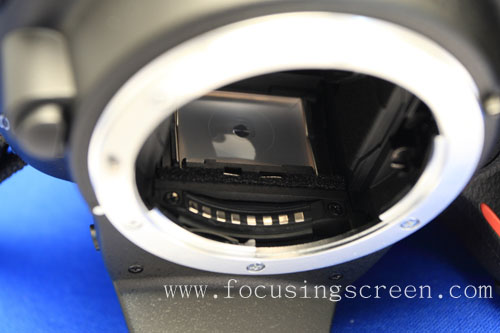

<P.10>This is the K3 for D5000 focusing screen.



<P.11> Please clip the focusing screen edge and put the inside of the camera.(Split-image or Micro-prism facing to pentaprism is correct)

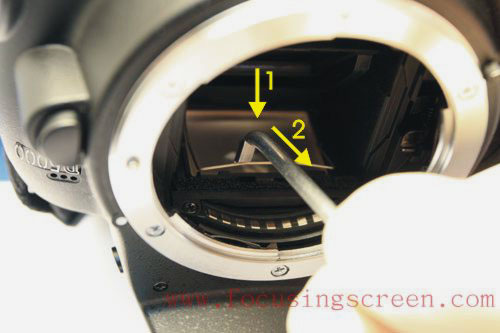

<P.12>Using the tool to hang wire after press down (1.) after pull outwardly (2.). Before fixing please check whether screen surface have dust or not.



<P.13>Press downward last (3.)can fix wire



<P.14>The focusing screen already install completion.



<P.15>This is the focusing screen that the viewfinder window sees.

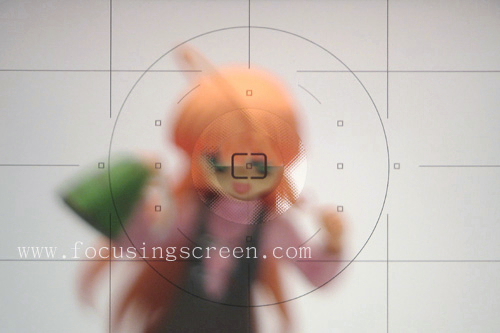

<P.16>This is the appearance which didn't focus.

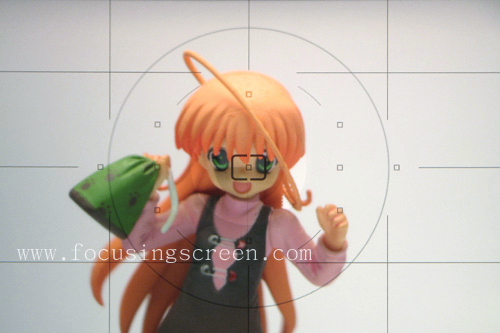

<P.17>This is the focus appearance.







ps:

1 . <p.15>~< p.17>On all sides darker is the relation that the DC shooting viewfinder,Actually on all sides BE bright.

2 . NIKON D5000 change focusingscreen will not influence AF-Focus and focus point operate.
